When building a professional sound system, selecting the right audio drivers is crucial for achieving exceptional sound quality. Whether you’re designing speakers for live performances, studio monitoring, or large venue installations, understanding the technical specifications and material choices can make the difference between mediocre and outstanding audio performance. In this comprehensive guide, we’ll explore the key factors to consider when choosing HF tweeters and compression drivers for your professional audio applications.
Understanding HF Tweeters: The Heart of High-Frequency Reproduction
High-frequency tweeters are essential components responsible for reproducing the upper range of the audio spectrum, typically from 1.2 kHz to 20 kHz and beyond. The quality of your tweeter directly impacts the clarity, detail, and overall listening experience of your sound system. Modern professional tweeters, like the 445AL and 445X series from AIJIE SOUND, incorporate advanced materials and engineering to deliver superior performance.

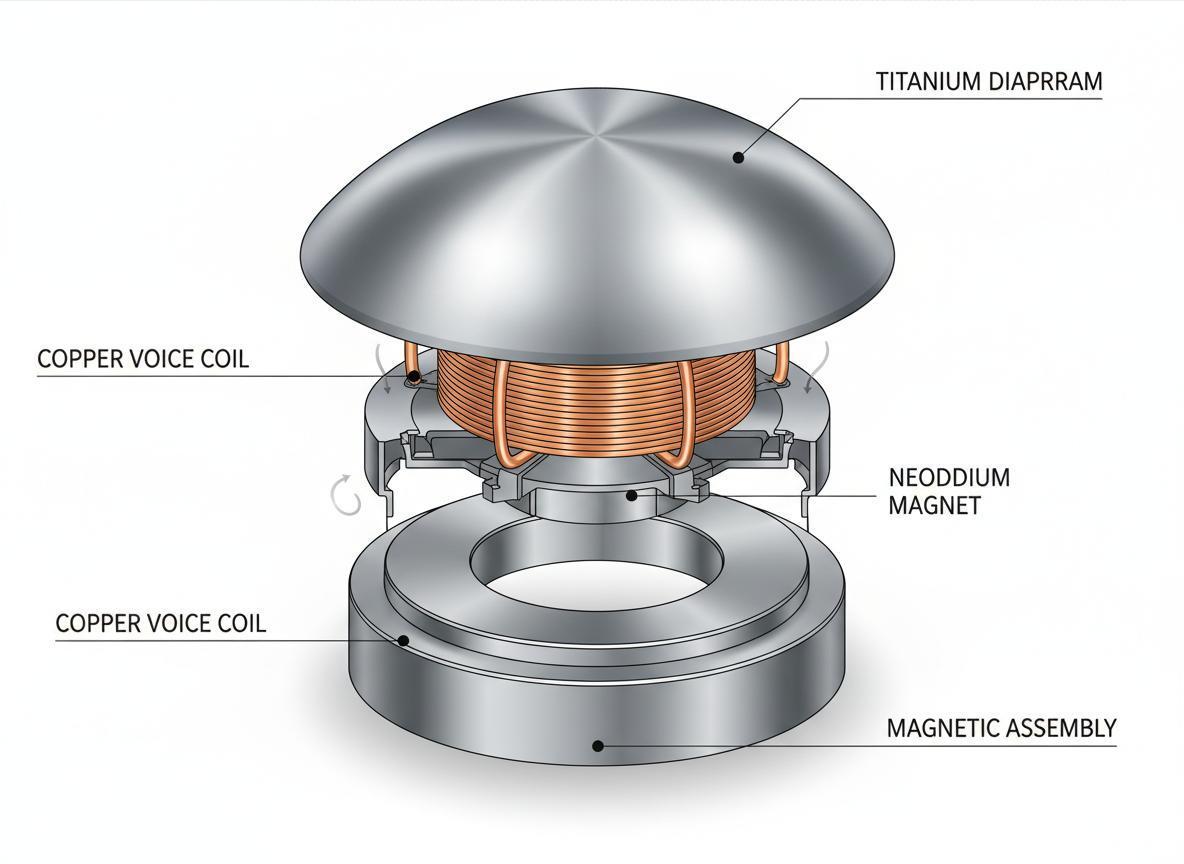

The Titanium Diaphragm Advantage
Titanium has emerged as the material of choice for high-end tweeter diaphragms, and for good reason. This remarkable metal offers an exceptional strength-to-weight ratio, allowing manufacturers to create extremely rigid yet lightweight diaphragms that can respond instantly to audio signals. The result is precise high-frequency reproduction with minimal distortion, even at high sound pressure levels.
Our 445AL and 445X HF tweeters feature titanium diaphragms paired with copper-clad aluminum (CCAL) voice coils. This combination provides excellent thermal conductivity while maintaining low moving mass. The 1.75-inch (44.4mm) voice coil diameter ensures efficient power handling, while the strontium ferrite magnet delivers a flux density of 1.7T for powerful, controlled sound output.
Key Specifications of 445AL/445X Series:
- Frequency Range: 1.2 kHz – 20 kHz
- Sensitivity: 106 dB (1W/1M)
- Nominal Impedance: 8 Ohm
- Throat Diameter: 1 inch (25mm)
- Mounting Type: Screw-on 1-3/8″
- Net Weight: 1.7 kg

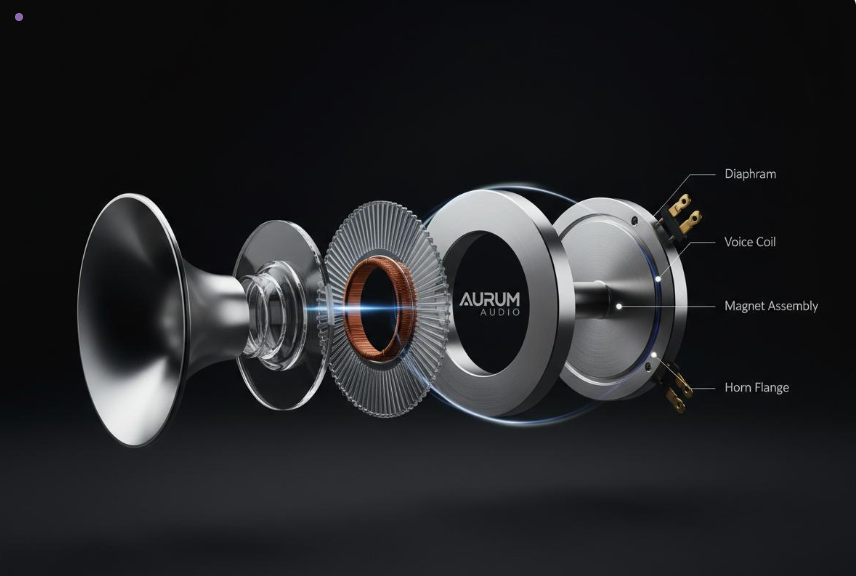

Compression Drivers: Power and Precision Combined
Compression drivers represent the pinnacle of professional audio engineering, designed to deliver high sound pressure levels with exceptional efficiency. These drivers are commonly used in large venue sound systems, line arrays, and high-output professional speakers where both power and clarity are essential.
Polyimide Diaphragms for Mid-Range Excellence
While titanium dominates the high-frequency realm, polyimide has proven to be an exceptional material for mid-range compression drivers. The 4599-2 pressure mid driver from AIJIE SOUND utilizes a polyimide diaphragm combined with a Kapton voice coil former, delivering outstanding thermal stability and consistent performance even under demanding conditions.
With a power capacity of 400W and sensitivity ratings of 123 dB (2×1W/1M), the 4599-2 series can handle the most challenging audio environments. The neodymium magnet assembly (D88×D55 38SH/42SH) provides exceptional magnetic field strength while maintaining a compact form factor. Available in both 8-ohm and 16-ohm configurations, these drivers offer flexibility for various system designs.Polyimide Diaphragms for Mid-Range Excellence
Key Factors in Driver Selection
1. Frequency Response and Range
Understanding the frequency range requirements of your application is fundamental. HF tweeters like the 445 series excel in the 1.2 kHz to 20 kHz range, making them ideal for high-frequency reproduction. For mid-range applications, the 4591 series covers 200 Hz to 9,000 Hz with its 3.5-inch voice coil, providing smooth response across critical vocal and instrumental frequencies.
2. Sensitivity and Efficiency
Sensitivity, measured in dB at 1 watt/1 meter, indicates how efficiently a driver converts electrical power into acoustic output. Higher sensitivity means less amplifier power is required to achieve the same sound pressure level. Our professional drivers offer sensitivities ranging from 106 dB to 123 dB, ensuring efficient operation even with modest amplification.
3. Power Handling
Power capacity determines how much continuous power a driver can handle without damage. For professional applications, selecting a driver with adequate headroom is essential. The 4599-2’s 400W power capacity makes it suitable for high-output installations, while the 4591’s 150W rating is ideal for medium-duty applications.
4. Impedance Matching
Most professional drivers are available in 8-ohm configurations, with some models offering 16-ohm alternatives. Proper impedance matching with your amplifier ensures optimal power transfer and system efficiency. Our 445 series and 4599 series both offer flexible impedance options to suit various system configurations.
Quality Manufacturing: The Foundation of Superior Sound

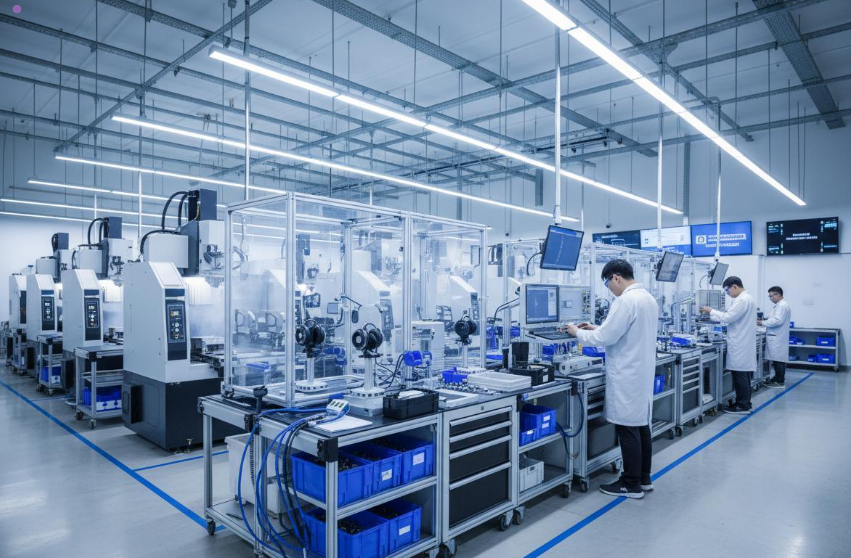

At AIJIE SOUND, we understand that exceptional audio performance begins with precision manufacturing. With over 20 years of experience in developing tweeters and compression drivers, our facility in Ningbo, China, implements rigorous quality control at every production stage.
From CNC machining of iron components to diaphragm molding, each process is carefully monitored to ensure consistent performance. We source core materials from international suppliers and have invested in multiple electroacoustic testing systems for product development and quality inspection. This commitment to excellence has earned recognition from customers worldwide, with exports reaching South Korea, India, Iran, and beyond.
Customization and OEM Solutions
Every audio application has unique requirements, which is why we offer comprehensive OEM and ODM services. Our engineering team works closely with clients to develop customized solutions that meet specific performance criteria. Whether you need modifications to existing designs or entirely new driver configurations, our development capabilities can bring your vision to reality.
Sample availability and flexible minimum order quantities make it easy to evaluate our products for your applications. With a supply capacity of 10,000 pieces per month for most models, we can support both small-scale projects and large-volume production requirements.
